TNC25X37LG2 PAN

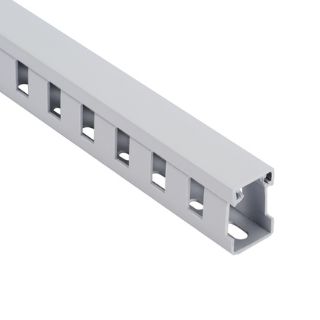

Panduit® TNC25X37LG2 Type TNC Halogen-Free Low Smoke Slot Wall Wiring Duct, 0.39 in Slotted Slot, 0.97 in W x 1.41 in D, Polyphenylene Ether/Polystyrene
Manufacturer: Panduit
Manufacturer part number: TNC25X37LG2
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$45.74

Product Details

Brand Name

Panduit®

Type

Type TNC

Description

Panduit® Slot Wall Wiring Duct, Type TNC Halogen-Free Low Smoke, 0.97 in Width, 1.41 in D, 6.6 ft Length, Slotted Slot, 0.39 in Slot, DIN Rail/Hole Mount, Polyphenylene Ether/Polystyrene, Light Gray

Application

For routing, protecting, managing electrical and communication cabling in control panels and wire routing applications

Standards

ARRA Compliant | BSS 7239 | Buy American Act Compliant | CSA Certified | DIN 5510-2 | NFPA 130 | RoHS Compliant | UL 94 V-0 Flammability Rated | UL Listed File No. E147128

Features

  • Metric halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
  • Upper and lower scorelines allows easy finger and sidewall section removals
  • Provided with DIN 43 659 mounting holes
  • Metric sizing and finger progression
  • Duct and cover packaged together in 2 m L
  • High continuous use temperature
  • The base sidewall is even with cover for superior aesthetics and greater wiring capacity when compared to non-flush cover wiring duct
  • Base and finger scorelines

Includes

Base and Cover

Specifications

Adhesive Backed:No
Color:Light Gray
Country of Origin:US
Depth:1.41 in
Length:2 m
Material:Polyphenylene Ether/Polystyrene
Mounting Type:DIN Rail/Hole
Slot Size:0.39 in
Slot Type:Slotted
Thickness:0.07 in
Width:0.97 in
