TOO005 LIT

Name: TOO005 LIT
Brand: Littelfuse
SKU: TOO005 LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

TOO005

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Medium Time Delay

Description

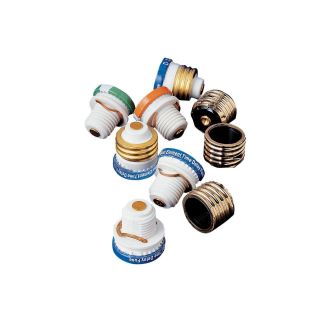

Littelfuse® Plug Fuse, Medium Time Delay, Series: TOO, Indicating/Non-Indicating: Non-Indicating, 5 A, 125 VAC, 10 kA Interrupt, Threaded Stud Terminal, Threaded Mount, Round Body, Dual Element

Application

General Purpose Circuits and Small Motor Load Applications

Standards

UL 248-11

Features

The national electric code now permits Edison base fuses to be used only for replacements in existing installations and then, only when there is no evidence of overfusing or tampering
All new Edison-based fuse holders must have type S fuse adapters installed before they are placed in service
Designed to prevent installation of wrong size fuses, Type S adapters (SAO series) screw into Edison base fuse holders so they may accept Type S fuses
Once installed the adapters cannot be removed
To prevent shunting of open fuses or over-fusing and to reduce nuisance fuse opening, it is recommended that SAO adapters with properly rated SOO series fuses be installed in all Edison base fuse holders
10 kA (rms symmetrical) interrupt rating

Specifications

Amperage Rating:	5 A
Body Type:	Round
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	10 kA
Mounting Type:	Threaded
Series:	TOO
Terminal Type:	Threaded Stud
Voltage Rating:	125 VAC
