TP1050-5M-25 GAT

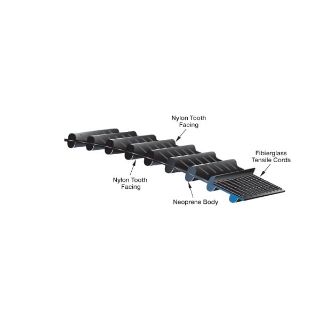

Picture of TP1050-5M-25 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
TP1050-5M-25
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$218.81 / EA

Description

Brand Name

Gates®

Description

Gates PowerGrip™ HTD™ Twin Power™ synchronous belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity. They have nylon facing on both tooth sides to provide equal high load carrying capabilities between the sides.
Gates® PowerGrip® HTD® Twin Power® Synchronous Belt, 210 Teeth, 5 mm Pitch, 1050 mm Overall Length, 25 mm Width, Neoprene, Fiberglass Reinforced Material

Application

Data Storage, Hand Power Tools, Postage Handling, Food Processors, Office Machines, Centrifuges, Money Handling, Medicine Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners

Standards

RMA Standard

Features

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Nylon tooth facing provides a durable wear surface for long service life
  • Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
  • Quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
  • Neoprene body provides protection against grime, grease, oil and moisture
  • Belt capacity is equal to standard single-sided PowerGrip® HTD® belts
  • Twin Power® belts have teeth on both sides to provide synchronization from both driving surfaces

Specifications

Country of Origin:US
Material:Neoprene
Number of Teeth:210
Overall Length:1050 mm
Pitch:5 mm
Reinforced Material:Fiberglass
Series:9252
Width:25 mm

Products Specifications

Brand Name
Gates
Pitch
5M
