TP1600-8MGT-20 GAT

PowerGrip™ GT™2 Twin Power™
Manufacturer: Gates
Manufacturer part number: TP1600-8MGT-20
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$210.47

Product Details

Brand Name

Gates

Alternate Supplier #

92320053

Description

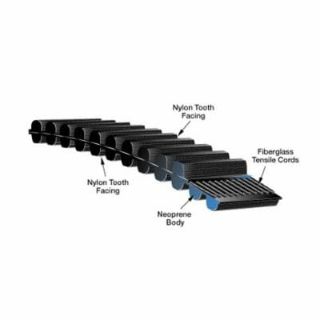

PowerGrip™ GT™2 Twin Power™ Belts feature dual-sided teeth to provide equal load carrying capacity on either belt surface, enabling synchronization from both driving surfaces. These synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility. Gates Twin Power PowerGrip GT2 belts are designed to perform at high speeds and characterized by low-running noise, with a larger tooth profile for increased performance capacity.

Features

Fiberglass tensile cord provides high strength and high stretch resistance with double loading capacity over equivalent Twin Power™ PowerGrip™ HTD™. Neoprene body resists moisture and contaminants. Belt capacity is equal to standard single-sided PowerGrip® timing belts and transmits up to 100% of its maximum rated load from either side of the belt. Substantially quieter operation enables wide application usage. Virtually maintenance-free with no lubrication requirements and minimal retensioning needs.

Specifications

Belt Back Side:Notched
Belt Height (in):0.31
Belt Height (mm):8
Belt/Slab:Belt
Color:Black
Cord Material:Fiberglass
Country of Origin:US
End:Endless
Fabric Material:Nylon Teeth
GC Base Product:PowerGrip® GT®2 Twin Power® Timing Belts - 8mm Pitch
Harmonized Tariff Code:4010.36.4500
Length Pitch (in):62.99
Length Pitch (mm):1600
Material:Polychloroprene (Neoprene)
Max Temp (°C):+100
Max Temp (°F):+212
Min Temp (°C):-30
Min Temp (°F):-22
Number of Teeth:200
Pitch (in):0.315
Pitch (mm):8
Proposition 65:NO
Section:8M
Sided:Double Sided
Sprock Comptab:PowerGrip GT
Standard Width:YES
Stat Conductive:No
Tooth Form:HTD Design
Width (in):0.787
Width (mm):20
