TP3500-14MGT-170 GAT

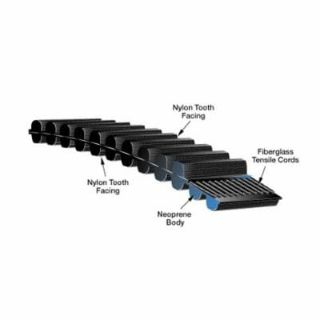

PowerGrip™ GT™2 Twin Power™ belts are designed to transmit up to 100% of its load carrying capacity on either side of the belt, or be used in applications that transmit fractional loads to both sides. This enables synchronization from both drive surfaces. Additionally, the belt is designed to limit noise emissions, enabling the belts to be employed in a variety of precision and public-facing applications, from robotics and medical devices to vending and currency handling machinery. GT™ stands for Gates® tooth, our proprietary modified curvilinear belt tooth profile. In PowerGrip™ GT™2 Twin Power™ belts, the fiberglass tensile cords and neoprene body are completed with a nylon tooth cover that provides high resistance to tooth jump for non-slip usage and exceptional belt life.

Gates® PowerGrip® GT®2 Twin Power® Synchronous Belt, Series: 9232, 250 Teeth, 14 mm Pitch, 3500 mm Overall Length, 170 mm Width, 104.16 mm Diameter Minimum Pulley, -30 to 180 deg F, Curved Tooth Profile, Neoprene, Fiberglass Reinforced
