TP530223S ACM

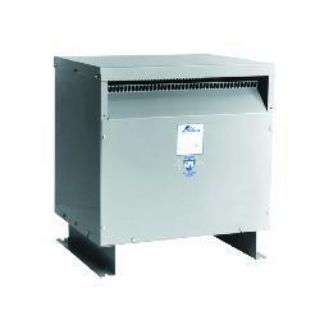

Picture of TP530223S ACM
Actual Product May Vary From Image

Product Details

Manufacturer:
Acme Electric
Manufacturer part number:
TP530223S
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$9,147.64 / EA

Description

Brand Name

Acme Electric®

Type

Air Colled/Dry

Description

Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.
Acme Electric® Distribution Transformer, Air Colled/Dry, 240/480 VAC Primary, 120/240 VAC Secondary, 100 kVA, 60 Hz, 1 ph, Wire Lead, Floor Mount, 200 deg C, NEMA 2, 150 deg C, 98.51 % Efficiency, 29.87 in L x 32.9 in W x 41.52 in H

Application

Harsh Industrial Locations, Corrosive Chemical Exposure and Waste Water Treatment Facilities

Standards

UL 1561 | File No. E12547V3 | 542B | C3222 Listed | CSA Certified | NEC Class 1 | Division 2 | NEC 501-2 (b),TP-1 Compliant OSHA Approved | ANSI Specified | IEEE | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

  • Ground studs for use with non-metallic conduit
  • Quiet operation with sound levels well below NEMA standards
  • Electrostatic shield for enhanced protection
  • Encapsulated core and coil
  • Ventilated core and coil
  • Extra large wiring compartment for easier installation and cooler case temperatures
  • NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers
  • Aluminum windings for increased insulation life, cooler operation, lower losses
  • Noise and vibration isolating pads standard to assure quiet operation
  • Large permanently legible nameplates on front
  • Single phase units can be banked for 3 phase service
  • All units have ground studs for use with non-metallic conduit
  • 2.14 PCT at 100 PCT PF regulation
  • 4.20 PCT impedance
  • 338 WTT no load losses
  • 2441 W full load
  • Energy efficient
  • Air cooled/dry cooling
  • Four windings
  • Aluminum, two primary winding, two winding secondary

Specifications

Connection Type:Wire Lead
Country of Origin:MX
Dimensions:29.87 in L x 32.9 in W x 41.52 in H
Efficiency:98.51 %
Enclosure Type:NEMA 2
Frequency Rating:60 Hz
Insulation:200 deg C
Mounting Type:Floor
Phase:1 ph
Power Rating:100 kVA
Primary Voltage:240/480 VAC
Secondary Voltage:120/240 VAC
Temperature Rating:150 deg C
