TP530233S ACM

Name: TP530233S ACM
Brand: Acme Electric
SKU: TP530233S ACM
Price: 16,233.76 USD
Availability: OutOfStock

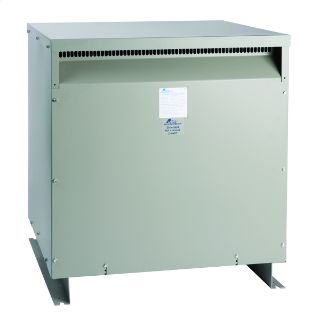

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

TP530233S

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$16,233.76 / EA

Description

Brand Name

Acme Electric®

Type

Dry Ventilated

Description

Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Acme Electric® Distribution Transformer, Dry Ventilated, 240/480 VAC Primary, 120/240 VAC Secondary, 167 kVA, 60 Hz, 1 Phase, Copper Lead Wire, Floor Mount, Class H/220 deg C, NEMA 3R, 150 deg C, 35 in H x 39-1/2 in W x 45 in D

Application

Harsh Industrial Locations, Corrosive Chemical Exposure and Waste Water Treatment Facilities

Standards

UL 506 | CSA C22.2 No. 47 Certified | DOE 10 CFR Part 431 2016 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

Ground studs for use with non-metallic conduit
Quiet operation with sound levels well below NEMA standards
Electrostatic shield for enhanced protection
Encapsulated core and coil
Four windings

Specifications

Connection Type:	Copper Lead Wire
Country of Origin:	MX
Dimensions:	35 in H x 39-1/2 in W x 45 in D
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Insulation:	Class H/220 deg C
Mounting Type:	Floor
Phase:	1
Power Rating:	167 kVA
Primary Voltage:	240/480 VAC
Secondary Voltage:	120/240 VAC
Temperature Rating:	150 deg C
