TP531203S ACM

Name: TP531203S ACM
Brand: Acme Electric
SKU: TP531203S ACM
Price: 4,672.92 USD
Availability: OutOfStock

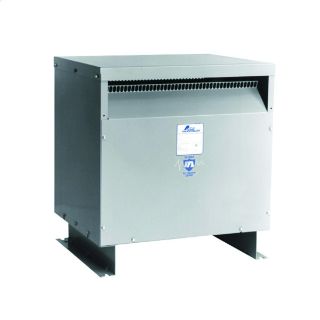

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

TP531203S

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$4,672.92 / EA

Description

Brand Name

Acme Electric®

Type

Dry Type Isolation Low Voltage Ventilated

Description

Acme Electric® Distribution Transformer, Dry Type Isolation Low Voltage Ventilated, Series: TP Series, 600 VAC Primary, 120/240 VAC Secondary, 50 kVA Power, 60 Hz Frequency, 1 ph, 6 Taps, Copper Wire Leads Connection, Floor Mounting, Class R/220 deg C Insulation, NEMA 2 Enclosure, 150 deg C, Steel Housing Material, 22.37 in L x 28.15 in W x 29.9 in H Dimensions

Application

For harsh industrial locations, corrosive chemical exposure, waste water treatment facilities, coastal or marine applications with high salt mist and any application where painted cold roll steel is not adequate

Standards

CSA C22.2 No. 47 | UL 506 | US DOE 10 CFR Part 431 | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

With weather shield, UL type 3R enclosure or type 2 enclosure without weather shield
Extra large wiring compartment for easier installation and cooler case temperatures
NEMA standard bus bar terminals, no special tools needed to make clearly marked connections tap changing easily accomplished with jumpers
Aluminum windings for increased insulation life, cooler operation, lower losses
Noise and vibration isolating pads standard to assure quiet operation
Large permanently legible nameplates on front
Single phase units can be banked for 3-phase service
All units have ground studs for use with non-metallic conduit
Suitable for wall or trapeze mounting wall brackets are available for units up to 50 kVA single and 75 kVA 3-phase

Specifications

Connection Type:	Copper Wire Leads
Country of Origin:	MX
Dimensions:	22.37 in L x 28.15 in W x 29.9 in H
Enclosure Type:	NEMA 2
Frequency Rating:	60 Hz
Housing Material:	Steel
Insulation:	Class R/220 deg C
Mounting Type:	Floor
Number of Taps:	6
Phase:	1
Power Rating:	50 kVA
Primary Voltage:	600 VAC
Secondary Voltage:	120/240 VAC
Series:	TP Series
Temperature Rating:	150 deg C
