TP5MR-1050-15 GAT

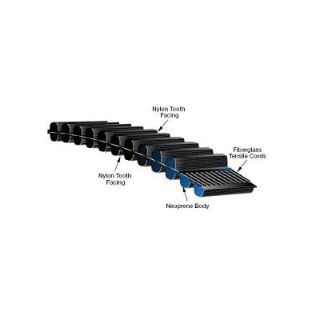

Picture of TP5MR-1050-15 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
TP5MR-1050-15
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$178.73 / EA

Description

Brand Name

Gates®

Description

PowerGrip® GT®2 Twin Power® belts feature dual sided teeth to provide equal load carrying capacity on either belt surface, enabling synchronization from both driving surfaces.
Gates® PowerGrip® GT®2 Twin Power® Synchronous Belt, Series: 9232, 210 Teeth, 5 mm Pitch, 1050 mm Overall Length, 15 mm Width, -30 to 100 deg C, Curvilinear Tooth Profile, Neoprene, Fiberglass Reinforced

Application

Data Storage, Hand Power Tools, Postage Handling, Food Processors, Office Machines, Centrifuges, Money Handling, Medical Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners, Food and Beverage Industries

Features

  • Belt capacity is equal to standard single sided PowerGrip® GT®2 belts
  • Virtually maintenance free with no lubrication requirements and minimal re-tensioning needs
  • Fiberglass tensile cord provides high strength and high stretch resistance
  • Neoprene body resists moisture and contaminants
  • Substantially quieter operation enables wide application usage
  • Versatility and performance
  • Better by design

Specifications

Country of Origin:US
Material:Neoprene
Number of Teeth:210
Overall Length:1050 mm
Pitch:5 mm
Reinforced Material:Fiberglass
Series:9232
Temperature Range:-30 to 100 deg C
Tooth Profile:Curvilinear
Width:15 mm

Products Specifications

Brand Name
Gates
Pitch
5MR
