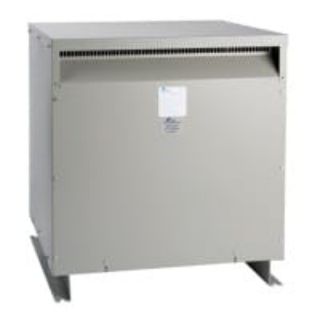

TP796944S ACM

Name: TP796944S ACM
Brand: Acme Electric
SKU: TP796944S ACM
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

TP796944S

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Description

Acme Electric® Isolation transformer, 240 Delta VAC Primary, 480Y/277 VAC Secondary, 30 kVA Power, 60 Hz Frequency, 3 ph, Wire Lead Connection, Floor Mounting, Class H/220 deg C Insulation, NEMA 3R Enclosure, 150 deg C, 24.39 in H x 19.37 in W x 330 in D Dimensions

Standards

UL 506 Listed | CSA C22.2 No 47 Certified | Meet CSA C802.2 Efficiency | CE Certified | RoHS Complaint

Features

Extra large wiring compartment for easier installation and cooler case temperatures
NEMA standard bus bar terminals, no special tools needed to make clearly marked connections, tap changing easily accomplished with jumpers
Aluminum windings for increased insulation life, cooler operation, lower losses
Noise and vibration isolating pads standard to assure quiet operation
Large permanently legible nameplates on front
All units have ground studs for use with non-metallic conduit

Specifications

Connection Type:	Wire Lead
Country of Origin:	US
Dimensions:	24.39 in H x 19.37 in W x 330 in D
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Insulation:	Class H/220 deg C
Mounting Type:	Floor
Phase:	3
Power Rating:	30 kVA
Primary Voltage:	240 Delta VAC
Secondary Voltage:	480Y/277 VAC
Temperature Rating:	150 deg C
