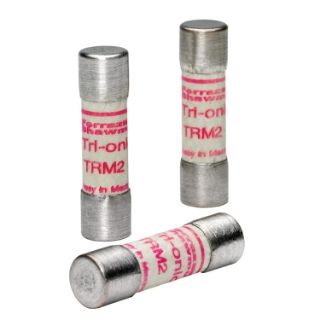

Picture of TRM15 FER
Actual Product May Vary From Image

TRM15 FER

Mersen TRM15 Low Voltage Time Delay Fuse, 15 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body
Manufacturer: Mersen
Manufacturer part number: TRM15
Availability: Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
12 10 10
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$5.56

Product Details

Brand Name

Mersen

Type

Low Voltage

Alternate Supplier #

Grainger - 540N54

Description

Tri-Onic® TRM time delay midget fuses are rated 250 VAC and are offered in 36 ampere ratings from 1/10 to 30 A. They have 12 sec time delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Mersen Time Delay Fuse, Low Voltage, Series: TRM, Rejection/Non-Rejection: Non-Rejection, 15 A, 250 VAC, 10 kA Interrupt, Class: Midget, 3 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Poly Tube, 13/32 in Dia x 1-1/2 in L Body Size

Application

Small Motors, Small Transformers, Lighting Circuits and Control Circuits Applications

Standards

RoHS Compliant | UL File No. E33925 | C22.2 No. 248.14

Features

  • Numerous ratings for a wide variety of applications
  • Time-delay for circuits with high inrush current
  • Tin-plated copper contact
  • Can be used with UltraSafe™ fuse holders

Specifications

Amperage Rating:15 A
Body Size:13/32 in Dia x 1-1/2 in L
Body Type:Cylindrical
Class:Midget
Country of Origin:MX
Interrupt Rating:10 kA
Material:Poly Tube
Mounting Type:Clip
Rejection/Non-Rejection:Non-Rejection
Response Time:3 s
Series:TRM
Terminal Type:Ferrule
Voltage Rating:250 VAC
