TRS175RDC FER

Name: TRS175RDC FER
Brand: Mersen
SKU: TRS175RDC FER
Availability: OutOfStock

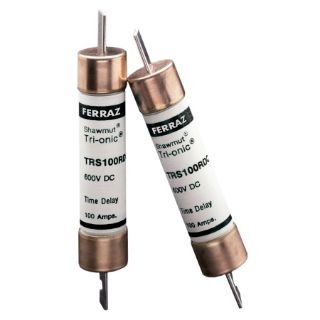

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

TRS175RDC

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Mersen

Type

Current Limiting

Description

Tri-Onic® DC fuse series is designed for DC circuit protection in surface and underground mines. The TRS-RDC is MSHA approved and meets the industries most severe third party requirements for 600 VDC rated fuses. The TRS-RDC is a time delay fuse with essentially the same time current characteristic as the standard Tri-Onic® fuse.

Mersen Tri-Onic® Time Delay Fuse, Current Limiting, Series: TRS-RDC, Rejection/Non-Rejection: Rejection, 175 A, 600 VDC, 20 kA Interrupt, Class: RK5, Blade Terminal, Clip Mount, Cylindrical Body, Fiber, 1-13/16 in Dia x 9-5/8 in L Body Size

Application

Mine Circuits, Trailing Cables, Pump Motors and Rail Heaters Applications

Standards

RoHS Compliant | MSHA No. 28-26-0

Features

DC rated for mine duty and other long time constant applications
Time delay for motor start-ups and high inrush loads without nuisance opening
Rugged glass melamine body for superior reliability in harsh environments
Tin-plated copper contact

Specifications

Amperage Rating:	175 A
Body Size:	1-13/16 in Dia x 9-5/8 in L
Body Type:	Cylindrical
Class:	RK5
Country of Origin:	MX
Interrupt Rating:	20 kA
Material:	Fiber
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	TRS-RDC
Terminal Type:	Blade
Voltage Rating:	600 VDC
