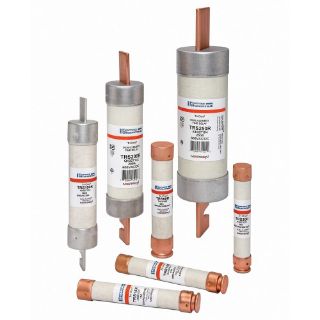

Actual Product May Vary From Image

TRS40RID FER

Name: TRS40RID FER
Brand: Mersen
SKU: TRS40RID FER
Price: 22.90 USD
Availability: InStock

Mersen Tri-Onic® TRS40RID Current Limiting Low Voltage Time Delay Fuse, 40 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Manufacturer: Mersen

Manufacturer part number: TRS40RID

Availability: Expected Leadtime 25 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
17	4	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$22.90

Qty:

Product Details

Brand Name

Mersen

Type

Current Limiting Low Voltage

Alternate Supplier #

Grainger - 4YZW8

Description

Tri-Onic® TRS-R current limiting time delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch circuits. The time delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Mersen Tri-Onic® Time Delay Fuse, Current Limiting Low Voltage, Series: TRS-R, Indicating, Rejection, 40 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK5, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Polyester, 1-1/16 in Dia x 5-1/2 in L Body

Application

Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment Applications

Standards

UL 248-12 File No. E2137 | CSA C22.2 File No.248.12

Features

Time delay for motor start-ups and transformer inrush currents without nuisance opening
Current limiting for low peak let-thru current
Rejection style design prevents replacement errors
Easy-to-read label for quick brand recognition and replacement
Metal embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High grade silica filler ensures fast arc quenching and high current limitation
North American power fuses
Copper, tin-plated copper contact
Solid state SmartSpot indicator

Specifications

Amperage Rating:	40 A
Body Size:	1-1/16 in Dia x 5-1/2 in L
Body Type:	Cylindrical
Class:	RK5
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200/20 kA
Material:	Polyester
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	TRS-R
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
