Actual Product May Vary From Image

TRS90RID FER

Name: TRS90RID FER
Brand: Mersen
SKU: TRS90RID FER
Price: 47.30 USD
Availability: InStock

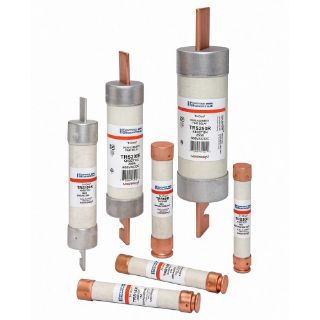

Mersen Tri-Onic® SmartSpot® TRS90RID Current Limiting Low Voltage North American Style Time Delay Fuse With Blown Fuse Visual Indication, 90 A, 600 VAC, 200 kA Interrupt, RK5 Class, Cylindrical Body

Manufacturer: Mersen

Manufacturer part number: TRS90RID

Availability: Expected Leadtime 25 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
3	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$47.30

Qty:

Product Details

Brand Name

Mersen

Type

Current Limiting Low Voltage North American Style

Alternate Supplier #

Grainger - 4YZX5

Description

Tri-Onic® TRS-R current limiting time delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with todays motors and transformers.

Mersen Tri-Onic® SmartSpot® Time Delay Fuse, Current Limiting Low Voltage North American Style, Series: TRS-R, Indicating, Rejection, 90 A, 600 VAC, 200 kA Interrupt, Class: RK5, Blade Terminal, Clip Mounting, Cylindrical Body, Polyester, 1.34 in Dia x 7.88 in L Body

Application

Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment Applications

Standards

UL 248-12 Guide JDDZ File No. E2137 | CSA C22.2 File No. 248.12, Class 1422-02 File No. 012636_0_000 | DC Listed

Features

Time delay for motor start-ups and transformer inrush currents without nuisance opening
Current limiting for low peak let-thru current
Rejection style design prevents replacement errors (when used with recommended fuse blocks)

Specifications

Amperage Rating:	90 A
Body Size:	1.34 in Dia x 7.88 in L
Body Type:	Cylindrical
Class:	RK5
Country of Origin:	MX
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	200 kA
Material:	Polyester
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	TRS-R
Terminal Type:	Blade
Voltage Rating:	600 VAC
