TS1215BS 5/8 MSG

Name: TS1215BS 5/8 MSG
Brand: Martin Sprocket & Gear
SKU: TS1215BS 5/8 MSG
Price: 57.93 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

TS1215BS 5/8

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$57.93 / EA

Description

Brand Name

Martin

Type

Bored-to-Size External Tooth

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.

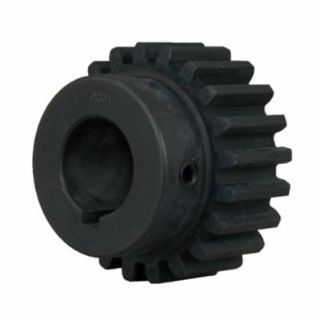

Martin Stock Spur Gear, Bored-to-Size External Tooth, 5/8 in Bore Dia, 1.417 in Outside Dia, 15 Teeth, 12 Diametral Pitch, 1-1/4 in, 1 in Face Width, Type B, 0.984 in Hub Dia, 5/8 in Hub Projection, 1-5/8 in Overall Length, 20 deg Pressure Angle, 3/16 x 3/32 in Keyway, Steel

Features

Manufactured of high carbon steel
Precise machining and processes ensure consistent finish and high quality
Commercial Class Gear. AGMA 6-8

Specifications

Bore Diameter:	5/8 in
Country of Origin:	US
Diametral Pitch:	12
Face Width:	1 in
Hub Diameter:	0.984 in
Hub Projection:	5/8 in
Hub Type:	Type B
Keyway Size:	3/16 x 3/32 in
Material:	Steel
Number of Teeth:	15
Outside Diameter:	1.417 in
Overall Length:	1/5/2008 in
Pitch Diameter:	1-1/4 in
Pressure Angle:	20 deg
