TS2016BS 3/8 MSG

Name: TS2016BS 3/8 MSG
Brand: Martin Sprocket & Gear
SKU: TS2016BS 3/8 MSG
Price: 35.45 USD
Availability: OutOfStock

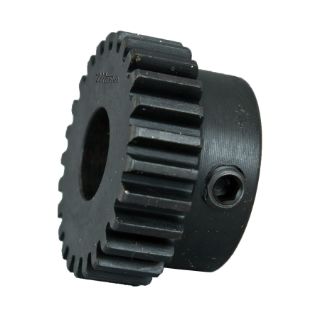

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

TS2016BS 3/8

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$35.45 / EA

Description

Brand Name

Martin

Type

Bored to Size

Description

Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.

Martin Stock Spur Gear, Bored to Size, 3/8 in Bore Dia, 0.9 in Outside Dia, 16 Teeth, 20 Diametral Pitch, 0.8 in, 1/2 in Face Width, Type B, 0.6563 in Hub Dia, 0.437 in Hub Projection, 15/16 in Overall Length, 20 deg Pressure Angle, Steel

Standards

AGMA 6-8

Features

Shaft ready includes keyway and setscrew
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	3/8 in
Country of Origin:	US
Diametral Pitch:	20
Face Width:	1/2 in
Hub Diameter:	0.6563 in
Hub Projection:	0.437 in
Hub Type:	Type B
Material:	Steel
Number of Teeth:	16
Outside Diameter:	0.9 in
Overall Length:	15/16 in
Pitch Diameter:	0.8 in
Pressure Angle:	20 deg
