TW:BT-4C-3/8-64 RUL

Product Details

Manufacturer part number:
TW:BT-4C-3/8-64
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Type

Tools - Torque Wrench

Description

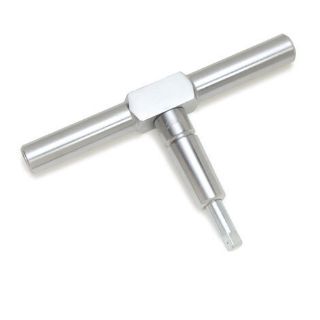

This slip type T-handle torque wrench is factory preset to 64 lbs-in (5.33 lbs-ft, 7.23 Nm) and has a 3/8" square drive size. Upon reaching the specified torque value of 64 lbs-in (5.33 lbs-ft, 7.23 Nm), the torque wrench automatically releases and resets. This prevents tightening above the preset value, even with continued turning. Ruland offers this torque wrench to ensure hardware in our shaft collars, rigid couplings, and servo couplings is precisely installed. It is manufactured by Seekonk Precision Tools in Massachusetts with +/- 4% accuracy, comes standard with NIST traceable certifications, and is made in accordance with Federal Specification MIL-STD-45662A. This torque wrench is manufactured from chrome plated alloy steel to withstand the rigors of industrial environments. Periodic calibration is required depending on frequency of use.

Note

Shipped with a NIST calibration certificate.

Specifications

Accuracy:+/- 4%
Conflict Minerals:Compliant
Country of Origin:USA
Drive Size:3/8 in square
Handle Type:T-Handle
Handle Width:8-3/8 in (213 mm)
ISO 9001:2015:ISO 9001:2015 Certified
Manufacturer:Seekonk Precision Tools
Material:Chrome Plated Steel
Note 2:Periodic calibration is required depending on frequency of use.
Operation Mode:Slip Type
Overall Length:5-3/8 in (136 mm)
Tariff Code:8204.20.0000
Torque Limiting Direction:Clockwise
Torque Setting:64 lbs-in (7.23 Nm)
Unit of Measurement:lbs-in
