TWN16 THO

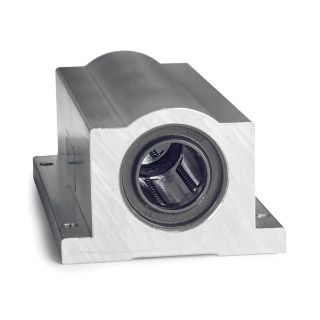

Picture of TWN16 THO
Actual Product May Vary From Image

Product Details

Manufacturer:
Thomson Industries
Manufacturer part number:
TWN16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$467.14 / EA

Description

Brand Name

Thomson®

Type

Non-Adjustable Closed Twin

Description

The Super Ball Bushing® bearing has been the industry standard for self-aligning linear bearings for over twenty years. This bearing provides three times the load capacity or 27 times the travel life of conventional linear bearings. Besides the dramatic increase in load capacity, the Super Ball Bushing® bearing is self-aligning, lightweight and adjustable with a low coefficient of friction. It is a quick and easy replacement for high friction plain bearings. The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications.
Thomson® Super Ball Bushing® Linear Bearing Pillow Block, Non-Adjustable Closed Twin, Series: TWN, 1 in Shaft Dia, 1.187 in Center Line to Base, 2.19 in Height, 3-1/4 in Length, 6 in Width, 2100 lb Dynamic, Steel Bearing, 3 m/s Maximum, 185 deg F

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

  • A self-aligning capability up to 0.5 deg compensates for inaccuracies in base flatness or carriage machining
  • RoundRail™ advantage combined with the self-aligning feature, eliminating the need for derating factors commonly required for linear guides
  • Travel speeds up to 10 ft/s without a reduction in load capacity
  • Lightweight, wear-resistant, engineered polymer retainers and outer sleeves that reduce inertia and noise
  • Radially floating bearing plates when installed in an adjustable housing, the Super Ball Bushing® bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement
  • A constant coefficient of friction as low as 0.001
  • The use of smaller, less expensive drive motors, belts, linkages, gears and ball screws, when replacing high friction plain bearings
  • Greater ball to bearing plate contact provides the increase in three times load capacity or travel life
  • Zero clearance fit
  • Smooth, quiet operation
  • Closed pillow blocks are for end supported shafting
  • For class L shafting

Specifications

Bearing Material:Steel
Center Line to Base:1.187 in
Height:2.19 in
Length:3-1/4 in
Load Capacity:2100 lb Dynamic
Maximum Speed:3 m/s
Series:TWN
Shaft Diameter:1 in
Temperature Rating:185 deg F
Width:6 in
