U004A MAR

Name: U004A MAR
Brand: Marathon Electric Motors
SKU: U004A MAR
Availability: OutOfStock

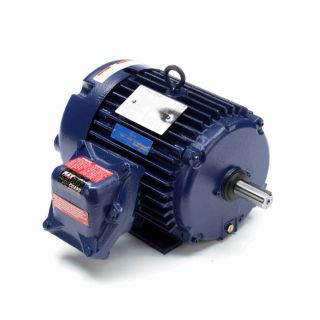

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U004A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

182TTGN6526

Features

Suitable for use on VFD at 208 volt 10:1 Variable torque, see Inverter Duty column for constant torque MAX GUARD® Class F insulation system Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger, Nameplated 60/50 Hz, 190/380 Volts, at next lower HP Motor will not accept a C-face kit

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	15.87
CE:	N
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	N
Current:	8.0/4.0
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	90.2
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	8.
Frame Material:	Cast Iron
Frame Size:	182
Frame Suffix:	T
Frame Type:	182T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
Hazardous Location:	EXP PROOF CL I GR C&D CL II GR F&G T3B
HP:	3
Insulation Class:	F
IP Code:	54
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	035660-800
Phases:	3
Power Factor:	80
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	3.76
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.85
Shaft Type:	T
Speed:	1765
Speed Max:	1765
Starting Type:	Line Or Inverter
Type of Overload Protector:	Thermostats (N/C)
UL:	UL Listed; also, UL Certified for Canada
Voltage:	230/460
