U006 MAR

Name: U006 MAR
Brand: Marathon Electric Motors
SKU: U006 MAR
Availability: OutOfStock

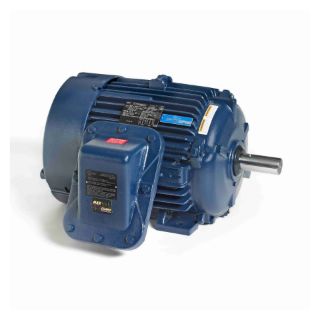

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

213TTGS4026

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous-Duty

Description

Marathon® Blue Chip® AC Motor, 4-Pole Continuous-Duty, Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready Special Features, 7.5 hp, 208 to 230/460 VAC, 22 to 20/10 A, 60 Hz Frequency, 3 ph ph, 1760 rpm Speed, EPFC Enclosure, 213T Frame, 1.38 in Dia x 3.41 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 28 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 19.66 in L x 17.01 in W x 13.22 in H Dimensions

Application

For use on variable frequency drives

Standards

CSA LR47504 | IEEE45 USCG | UL E12044

Features

Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready

Specifications

Amperage Rating:	22 to 20/10 A
Bearing Type:	Ball
Constant Torque Speed Range:	10:1
Country of Origin:	US
Dimensions:	19.66 in L x 17.01 in W x 13.22 in H
Enclosure Type:	EPFC
Frame:	213T
Frequency Rating:	60 Hz
Horsepower:	7.5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.38 in Dia x 3.41 in L
Speed:	1760 rpm
Temperature Rating:	40 deg C
Torque Rating:	28 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
