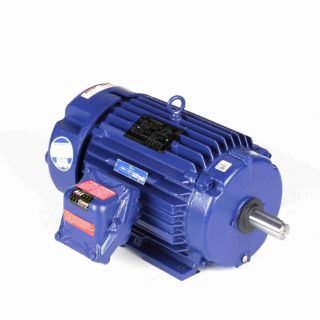

U007B MAR

Name: U007B MAR
Brand: Marathon Electric Motors
SKU: U007B MAR
Price: 2,429.49 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U007B

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$2,429.49 / EA

Description

Alternate Supplier #

215TTGND6526

Features

Explosion Proof Division 1 Class I, Groups C & D, Class II, Groups F & G Meets NEMA Premium® efficiency 10:1 Variable torque, 10:1 Constant torque MAX GUARD® Class F insulation system, Internal and external epoxy paint Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Motor will not accept a C-face kit. Suitable for use on VFD at 208 volt 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	22.63
CE:	N
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	N
Current:	26.6/13.3
DE Bearing Size:	6307
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91.7
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	12.12
Frame Material:	Cast Iron
Frame Size:	215
Frame Suffix:	T
Frame Type:	215T
Frequency:	60
Hazardous Location:	EXP PROOF CL I GR C&D CL II GR F&G T3B
HP:	10
Insulation Class:	F
IP Code:	54
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	037660-1212
Phases:	3
Power Factor:	76.9
Power Rating (HP):	10
Power Rating (kW):	7.5
Resistance Main:	.941
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.375
Shaft Extension:	3.38
Shaft Type:	T
Speed:	1765
Speed Max:	1765
Starting Type:	Line Or Inverter
Type of Overload Protector:	Thermostats (N/C)
UL:	UL Listed; also, UL Certified for Canada
Voltage:	230/460
