U022A MAR

Name: U022A MAR
Brand: Marathon Electric Motors
SKU: U022A MAR
Availability: OutOfStock

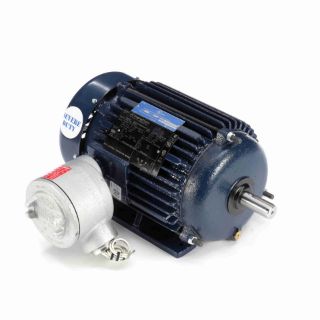

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U022A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145TTGN6540

Features

Meets NEMA Premium® efficiency, Bearing Current Protection (BCP) 10:1 Variable torque, see Inverter Duty column for constant torque MAX GUARD® Class F insulation system, Internal and external epoxy paint Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Rolled steel fan guard 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger, Nameplated 60/50 Hz, 190/380 Volts, at next lower HP, as noted Motor will not accept a C-face kit

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	14.73
CE:	N
Connection Drawing Number:	A-EE7300T
Country of Origin:	United States of America
CSA:	Y
Current:	2.4
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	86.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	7.5
Frame Material:	Cast Iron
Frame Size:	145
Frame Suffix:	T
Frame Type:	145T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
Hazardous Location:	EXP PROOF CL I GR D CL II GR F&G T3B
HP:	2
Insulation Class:	F
IP Code:	54
KVA Code:	N
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-104607-750
Phases:	3
Power Factor:	72
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	6.51
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.31
Shaft Type:	T
Speed:	1755
Speed Max:	1755
Starting Type:	Line Or Inverter
Type of Overload Protector:	Thermostats (N/C)
UL:	UL Listed And CSA Certified
Voltage:	575
