U030A MAR

Name: U030A MAR
Brand: Marathon Electric Motors
SKU: U030A MAR
Price: 5,226.17 USD
Availability: OutOfStock

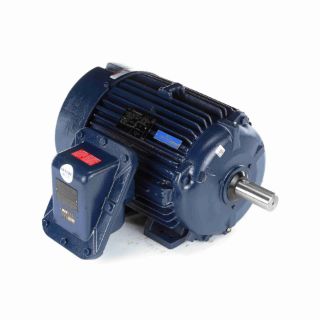

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U030A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$5,226.17 / EA

Description

Alternate Supplier #

286TTGN16533

Features

Meets NEMA Premium® efficiency MAX GUARD® Class F insulation system Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	27.71
CE:	N
Connection Drawing Number:	A-EE7300T
Country of Origin:	United States of America
CSA:	Y
Current:	29.2
DE Bearing Size:	6311
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	94.1
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	14.25
Frame Material:	Cast Iron
Frame Size:	286
Frame Suffix:	T
Frame Type:	286T
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
Hazardous Location:	EXP PROOF CL I GR C&D CL II GR F&G T3B
HP:	30
Insulation Class:	F
IP Code:	54
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6210
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS311106-1425
Phases:	3
Power Factor:	82
Power Rating (HP):	30
Power Rating (kW):	22.4
Resistance Main:	.205
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.875
Shaft Extension:	4.82
Shaft Type:	T
Speed:	1773
Speed Max:	1773
Starting Type:	Line Or Inverter
Type of Overload Protector:	Thermostats (N/C)
UL:	UL Listed And CSA Certified
Voltage:	575
