U033A MAR

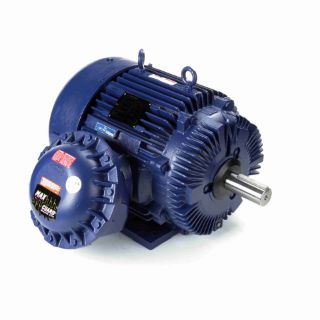

Picture of U033A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
U033A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$12,725.20 / EA

Description

Alternate Supplier #

364TTGS16537

Features

Meets NEMA Premium® efficiency 10:1 Variable torque, see Inverter Duty column for constant torque MAX GUARD® Class F insulation system Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger UL listed file no. E12044, CSA certified file no. LR47504

Specifications

Assembly/Box Mounting:F1 Only
C Dim (IN):31.74
CE:N
Connection Drawing Number:A-EE7300T
Country of Origin:United States of America
CSA:Y
Current:55.0
DE Bearing Size:6314
DE Bearing Type:Ball
Duty:Continuous
Efficiency:95
Electrical Type:Squirrel Cage Inverter Rated
Enclosure Type:Explosion Proof Fan cooled
Frame Length (IN):13.5
Frame Material:Cast Iron
Frame Size:364
Frame Suffix:T
Frame Type:364T
Frequency:60
Harmonized Tariff Code:8501.52.8040
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3B
HP:60
Insulation Class:F
IP Code:54
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6312
ODE Bearing Type:Ball
Outline Drawing Number:B-SS518459-1350
Phases:3
Power Factor:86
Power Rating (HP):60
Power Rating (kW):45.0
Resistance Main:.101
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):2.375
Shaft Extension:6.13
Shaft Type:T
Speed:1780
Speed Max:1780
Starting Type:Line Or Inverter
Type of Overload Protector:Thermostats (N/C)
UL:UL Listed And CSA Certified
Voltage:575

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Explosion Proof Fan Cooled
Horsepower
60 HP
Speed Rating
1780
Type
Squirrel Cage Inverter Rated
Voltage Rating
575 V
