U035A MAR

Name: U035A MAR
Brand: Marathon Electric Motors
SKU: U035A MAR
Price: 17,282.22 USD
Availability: OutOfStock

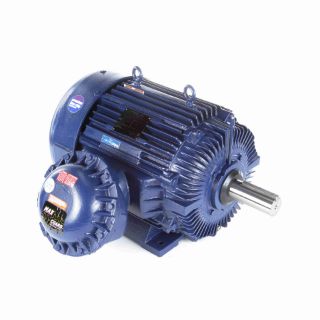

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U035A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$17,282.22 / EA

Description

Alternate Supplier #

405TTGS16539

Features

Meets NEMA Premium® efficiency 10:1 Variable torque, see Inverter Duty column for constant torque MAX GUARD® Class F insulation system Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger, Nameplated 60/50 Hz, 190/380 Volts, at next lower HP 10:1 constant torque available as build-up, RTM for price and availability

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	37.75
CE:	N
Connection Drawing Number:	A-EE7300S
Country of Origin:	United States of America
CSA:	Y
Current:	90.5
DE Bearing Size:	6314
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	95.4
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	16.75
Frame Material:	Cast Iron
Frame Size:	405
Frame Suffix:	T
Frame Type:	405T
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
Hazardous Location:	EXP PROOF CL I GR C&D CL II GR F&G T3C
HP:	100
Insulation Class:	F
IP Code:	54
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6312
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS518936-1675
Phases:	3
Power Factor:	87
Power Rating (HP):	100
Power Rating (kW):	75.0
Resistance Main:	.054
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.875
Shaft Extension:	7.5
Shaft Type:	T
Speed:	1780
Speed Max:	1780
Starting Type:	Line Or Inverter
Type of Overload Protector:	Thermostats (N/C)
UL:	UL Listed And CSA Certified
Voltage:	575
