U040A MAR

Name: U040A MAR
Brand: Marathon Electric Motors
SKU: U040A MAR
Price: 1,344.41 USD
Availability: OutOfStock

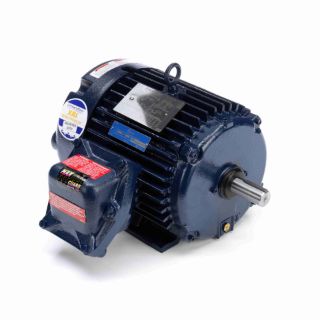

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U040A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$1,344.41 / EA

Description

Alternate Supplier #

182TTGN6576

Features

Rolled steel fan guard 10:1 Variable torque, see Inverter Duty column for constant torque MAX GUARD® Class F insulation system, Internal and external epoxy paint Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Suitable for use on VFD at 208 volt 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger, Nameplated 60/50 Hz, 190/380 Volts, at next lower HP Motor will not accept a C-face kit

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	15.87
CE:	N
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	N
Current:	4.4/2.2
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	87.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Explosion Proof Fan cooled
Frame Length (IN):	8.
Frame Material:	Cast Iron
Frame Size:	182
Frame Suffix:	T
Frame Type:	182T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
Hazardous Location:	EXP PROOF CL I GR D CL II GR F&G T3B
HP:	1.50
Insulation Class:	F
IP Code:	54
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	035660-800
Phases:	3
Power Factor:	71.5
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	7.75
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.85
Shaft Type:	T
Speed:	1175
Speed Max:	1175
Starting Type:	Line Or Inverter
Type of Overload Protector:	Thermostats (N/C)
UL:	UL Listed; also, UL Certified for Canada
Voltage:	230/460
