U044 MAR

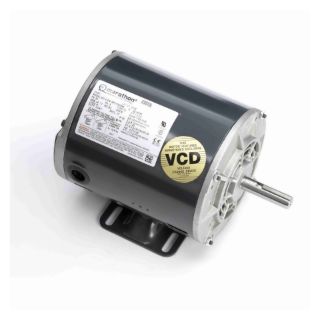

Picture of U044 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
254TTGN4076
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® Blue Chip® AC Motor, 6-Pole Continuous-Duty, Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready Special Features, 7.5 hp, 230/460 VAC, 20/10 A, 60 Hz Frequency, 3 ph ph, 3515 rpm Speed, EPFC Enclosure, 254T Frame, 1.63 in Dia x 4.2 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 42.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 23.52 in L x 20.3 in W x 14.06 in H Dimensions

Application

For use on variable frequency drives

Standards

CSA LR47504 | IEEE45 USCG | NEMA Premium® Efficiency | UL E12044

Features

Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready

Specifications

Amperage Rating:20/10 A
Bearing Type:Ball
Constant Torque Speed Range:10:1
Country of Origin:US
Dimensions:23.52 in L x 20.3 in W x 14.06 in H
Enclosure Type:EPFC
Frame:254T
Frequency Rating:60 Hz
Horsepower:7.5 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:1.63 in Dia x 4.2 in L
Speed:3515 rpm
Temperature Rating:40 deg C
Torque Rating:42.5 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:230/460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Explosion Proof Fan Cooled
Horsepower
7 1/2 HP
Speed Rating
1170
Type
Squirrel Cage Inverter Rated
Voltage Rating
230/460 V
