U048 MAR

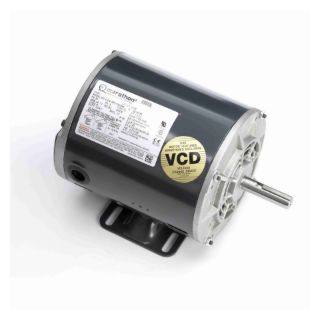

Picture of U048 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
324TTGP4076
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® Blue Chip® AC Motor, 6-Pole Continuous-Duty, Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready Special Features, 25 hp, 230/460 VAC, 67/33.5 A, 60 Hz Frequency, 3 ph ph, 3555 rpm Speed, EPFC Enclosure, 324T Frame, 2.13 in Dia x 5.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 142 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 28.97 in L x 25.42 in W x 16.57 in H Dimensions

Standards

CSA LR47504 | IEEE45 USCG | NEMA Premium® Efficiency | UL E12044

Features

Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready

Specifications

Amperage Rating:67/33.5 A
Bearing Type:Ball
Constant Torque Speed Range:10:1
Country of Origin:US
Dimensions:28.97 in L x 25.42 in W x 16.57 in H
Enclosure Type:EPFC
Frame:324T
Frequency Rating:60 Hz
Horsepower:25 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:2.13 in Dia x 5.25 in L
Speed:3555 rpm
Temperature Rating:40 deg C
Torque Rating:142 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:230/460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Explosion Proof Fan Cooled
Horsepower
25 HP
Speed Rating
1170
Type
Squirrel Cage Inverter Rated
Voltage Rating
230/460 V
