U049 MAR

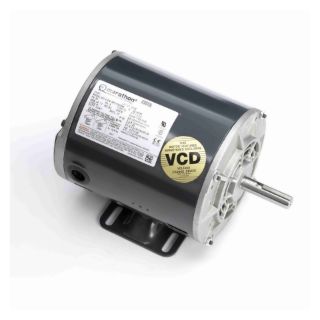

Picture of U049 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
326TTGS4076
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® Blue Chip® AC Motor, 6-Pole Continuous-Duty, Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready Special Features, 30 hp, 230/460 VAC, 76/38 A, 60 Hz Frequency, 3 ph ph, 1775 rpm Speed, EPFC Enclosure, 326T Frame, 2.13 in Dia x 5.53 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 168 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 2:1 Constant Torque Speed, 10:1 Variable Torque Speed, 30.37 in L x 25.63 in W x 20.35 in H Dimensions

Application

For use on variable frequency drives

Standards

CSA LR47504 | IEEE45 USCG | NEMA Premium® Efficiency | UL E12044

Features

Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready

Specifications

Amperage Rating:76/38 A
Bearing Type:Ball
Constant Torque Speed Range:2:1
Country of Origin:US
Dimensions:30.37 in L x 25.63 in W x 20.35 in H
Enclosure Type:EPFC
Frame:326T
Frequency Rating:60 Hz
Horsepower:30 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:2.13 in Dia x 5.53 in L
Speed:1775 rpm
Temperature Rating:40 deg C
Torque Rating:168 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:230/460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Explosion Proof Fan Cooled
Horsepower
30 HP
Speed Rating
1180
Type
Squirrel Cage Inverter Rated
Voltage Rating
230/460 V
