U068 MAR

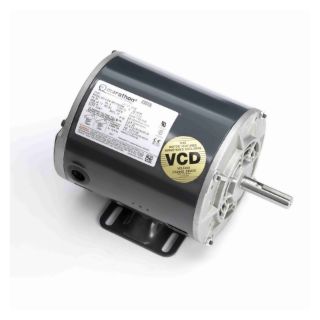

Picture of U068 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
324TSTGP4001
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous-Duty Split Phase

Description

Marathon® Blue Chip® AC Motor, 2-Pole Continuous-Duty Split Phase, Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready Special Features, 40 hp, 230/460 VAC, 95/47.5 A, 60 Hz Frequency, 3 ph ph, 1175 rpm Speed, EPFC Enclosure, 324TS Frame, 1.88 in Dia x 3.75 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 74.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 2:1 Constant Torque Speed, 10:1 Variable Torque Speed, 27.47 in L x 25.42 in W x 16.57 in H Dimensions

Application

For use on variable frequency drives

Standards

CSA LR47504 | IEEE45 USCG | NEMA Premium® Efficiency | UL E12044

Features

Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready

Specifications

Amperage Rating:95/47.5 A
Bearing Type:Ball
Constant Torque Speed Range:2:1
Country of Origin:US
Dimensions:27.47 in L x 25.42 in W x 16.57 in H
Enclosure Type:EPFC
Frame:324TS
Frequency Rating:60 Hz
Horsepower:40 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:1.88 in Dia x 3.75 in L
Speed:1175 rpm
Temperature Rating:40 deg C
Torque Rating:74.5 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:230/460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Explosion Proof Fan Cooled
Horsepower
40 HP
Speed Rating
3545
Type
Squirrel Cage Inverter Rated
Voltage Rating
230/460 V
