U076 MAR

Name: U076 MAR
Brand: Marathon Electric Motors
SKU: U076 MAR
Availability: OutOfStock

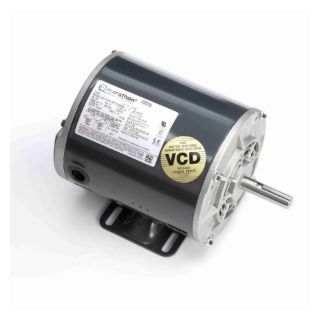

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

284TSTGP4036

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous-Duty Split Phase

Description

Marathon® Blue Chip® AC Motor, 4-Pole Continuous-Duty Split Phase, Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready Special Features, 25 hp, 208 to 230/460 VAC, 67 to 62/31 A, 60 Hz Frequency, 3 ph ph, 870 rpm Speed, EPFC Enclosure, 284TS Frame, 1.63 in Dia x 3.25 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 93.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 2:1 Constant Torque Speed, 10:1 Variable Torque Speed, 24.89 in L x 24.38 in W x 14.82 in H Dimensions

Application

For use on variable frequency drives

Standards

CSA LR47504 | IEEE45 USCG | NEMA PremiumÂ® Efficiency | UL E12044

Features

Explosion Proof AC Motors, Severe Duty Motors, Inverter Ready

Specifications

Amperage Rating:	67 to 62/31 A
Bearing Type:	Ball
Constant Torque Speed Range:	2:1
Country of Origin:	US
Dimensions:	24.89 in L x 24.38 in W x 14.82 in H
Enclosure Type:	EPFC
Frame:	284TS
Frequency Rating:	60 Hz
Horsepower:	25 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.63 in Dia x 3.25 in L
Speed:	870 rpm
Temperature Rating:	40 deg C
Torque Rating:	93.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
