U082A MAR

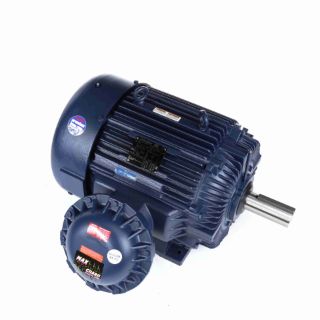

Picture of U082A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
U082A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$17,282.22 / EA

Description

Alternate Supplier #

405TSTGS16531

Features

Meets NEMA Premium® efficiency 10:1 Variable torque, see Inverter Duty column for constant torque MAX GUARD® Class F insulation system Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint 1.15 Service Factor on sinewave or 1.0 Service Factor on IGBT power Precision balanced to .08”/sec, Extended grease tubes Normally closed thermostats (must be connected to control circuit) Meets temperature code T3B, Shaft slinger, Nameplated 60/50 Hz, 190/380 Volts, at next lower HP 10:1 torque available as build-up, RTM for price and availability

Specifications

Assembly/Box Mounting:F1 Only
C Dim (IN):34.12
CE:N
Connection Drawing Number:A-EE7308AD
Country of Origin:United States of America
CSA:Y
Current:226.0/113.0
DE Bearing Size:6316
DE Bearing Type:Ball
Duty:Continuous
Efficiency:95.4
Electrical Type:Squirrel Cage Inverter Rated
Enclosure Type:Explosion Proof Fan cooled
Frame Length (IN):16.75
Frame Material:Cast Iron
Frame Size:405
Frame Suffix:TS
Frame Type:405TS
Frequency:60
Harmonized Tariff Code:8501.53.4080
Hazardous Location:EXP PROOF CL I GR C&D CL II GR F&G T3B
HP:100
Insulation Class:F
IP Code:54
KVA Code:F
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6313
ODE Bearing Type:Ball
Outline Drawing Number:B-SS518935-1675
Phases:3
Power Factor:87
Power Rating (HP):100
Power Rating (kW):75.0
Resistance Main:.054
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):2.125
Shaft Extension:4.5
Shaft Type:TS
Speed:1780
Speed Max:1780
Starting Type:Line Or Inverter
Type of Overload Protector:Thermostats (N/C)
UL:UL Listed And CSA Certified
Voltage:230/460

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Explosion Proof Fan Cooled
Horsepower
100 HP
Speed Rating
1780
Type
Squirrel Cage Inverter Rated
Voltage Rating
230/460 V
