U102 MAR

Name: U102 MAR
Brand: Marathon Electric Motors
SKU: U102 MAR
Availability: OutOfStock

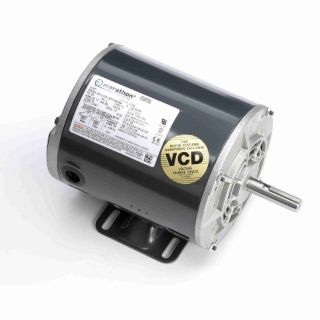

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U102

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

256TTDX4021

Features

NEMA JM pump shaft dimensions JMV frame includes drip cover for vertical mount without base JM frame has rigid base, drip cover not included Ball bearings, mechanically locked on shaft end Continuous duty 1.15 Service Factor UL Recognized and CSA Certified UL Listed for Fire Pump applications (except as noted)

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	24.17
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	66.5
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	15.15
Frame Material:	Rolled Steel
Frame Size:	256
Frame Suffix:	JM
Frame Type:	256JM
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	25
Insulation Class:	B
IP Code:	12
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS86518-1515
Phases:	3
Power Factor:	88.3
Power Rating (HP):	25
Power Rating (kW):	18.7
Resistance Main:	.365
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.25
Shaft Extension:	5.25
Shaft Type:	JM
Speed:	3520
Speed Max:	3520
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	200
