U103A MAR

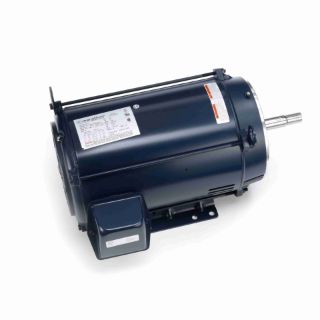

Picture of U103A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
U103A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

256TTDR16008

Features

NEMA JM pump shaft dimensions JMV frame includes drip cover for vertical mount without base JM frame has rigid base, drip cover not included Mechanically locked on shaft end Continuous duty

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):23.6
CE:Y
Connection Drawing Number:80022802
Country of Origin:Mexico
CSA:Y
Current:57.0/28.5
DE Bearing Size:6309
DE Bearing Type:Ball
Duty:Continous
Efficiency:92
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Material:Rolled Steel
Frame Size:256
Frame Suffix:JM
Frame Type:256JM
Frequency:60
Harmonized Tariff Code:8501.52.8040
HP:25
Insulation Class:B
IP Code:12
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid base
NEMA Design:B
Number of Poles:2
Number of Speeds:1
ODE Bearing Size:6207
ODE Bearing Type:Ball
Outline Drawing Number:610-0016
Phases:3
Power Factor:89.5
Power Rating (HP):25
Power Rating (kW):18.7
Resistance Main:.48
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):1.625
Shaft Extension:5.28
Shaft Type:JM
Speed:3525
Speed Max:3525
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
25 HP
Speed Rating
3525
Type
Squirrel Cage Induction Run
Voltage Rating
230/460 V
