U105 MAR

Name: U105 MAR
Brand: Marathon Electric Motors
SKU: U105 MAR
Availability: OutOfStock

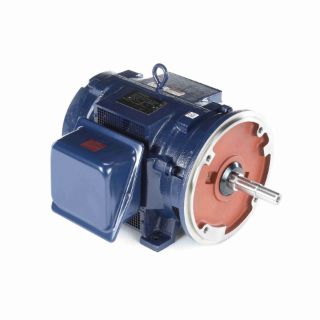

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U105

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

284TTDP4043

Features

NEMA JM pump shaft dimensions JMV frame includes drip cover for vertical mount without base JM frame has rigid base, drip cover not included Ball bearings, mechanically locked on shaft end Continuous duty 1.15 Service Factor UL Recognized and CSA Certified UL Listed for Fire Pump applications (except as noted)

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	24.31
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	67.5
DE Bearing Size:	6311
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91.7
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	12.75
Frame Material:	Cast Iron
Frame Size:	284
Frame Suffix:	JM
Frame Type:	284JM
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	25
Insulation Class:	B
IP Code:	23
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6210
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS200036-1275
Phases:	3
Power Factor:	84
Power Rating (HP):	25
Power Rating (kW):	18.7
Resistance Main:	.399
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.25
Shaft Extension:	5.28
Shaft Type:	JM
Speed:	1765
Speed Max:	1765
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208
