U153 MAR

Name: U153 MAR
Brand: Marathon Electric Motors
SKU: U153 MAR
Availability: OutOfStock

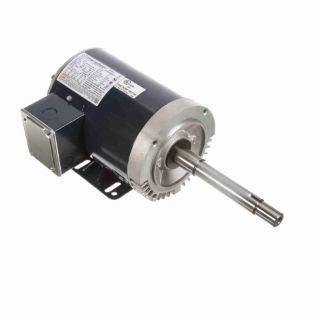

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U153

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145TTDR4111

Features

NEMA JP pump shaft dimensions JPV frame includes drip cover for vertical mount without base JP frame has rigid base, drip cover not included Ball bearings, mechanically locked on shaft end Continuous duty 1.15 Service Factor UL Recognized and CSA Certified UL Listed for Fire Pump applications (except as noted)

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.68
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	United States of America
CSA:	Y
Current:	8.4/4.2
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	84
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.56
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	JP
Frame Type:	145JP
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	B
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100132-756
Phases:	3
Power Factor:	82
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	1.7
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	7.15
Shaft Type:	JP
Speed:	3490
Speed Max:	3490
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
