U1652 MAR

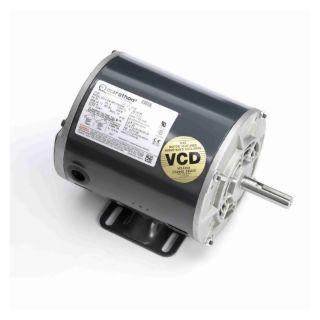

Picture of U1652 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
256TTFCA4026
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous-Duty

Description

Marathon® AC Motor, 4-Pole Continuous-Duty, Compressor Motors, Fan & Blower Motors, General Purpose AC Motors Application, Inverter Ready Special Features, 20 hp, 208 to 230/460 VAC, 53 to 48/24 A, 60 Hz Frequency, 3 ph ph, 1160 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 256T Frame, 1.63 in Dia x 4 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 75 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 25.43 in L x 19.16 in W x 14.09 in H Dimensions

Application

Pumps, Conveyors and Other Industrial Machinery

Standards

CE | CSA Certified | EISA Compliant | NEMA Premium® Efficiency | UL Listed

Features

Inverter Ready

Specifications

Amperage Rating:53 to 48/24 A
Application Type:Compressor Motors, Fan & Blower Motors, General Purpose AC Motors
Bearing Type:Ball
Constant Torque Speed Range:10:1
Country of Origin:CN
Dimensions:25.43 in L x 19.16 in W x 14.09 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:256T
Frequency Rating:60 Hz
Horsepower:20 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:1.63 in Dia x 4 in L
Speed:1160 rpm
Temperature Rating:40 deg C
Torque Rating:75 ft-lb
Voltage Rating:208 to 230/460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
TEFC
Horsepower
20 HP
Speed Rating
1765
Type
Squirrel Cage Induction Run
Voltage Rating
208-230/460 V
