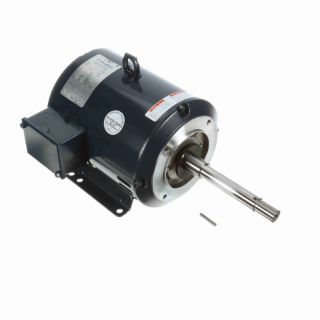

U165A MAR

Name: U165A MAR
Brand: Marathon Electric Motors
SKU: U165A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U165A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

182TTDW14011

Features

NEMA JP pump shaft dimensions JPV frame includes drip cover for vertical mount without base JP frame has rigid base, drip cover not included Ball bearings, mechanically locked on shaft end Continuous duty 1.15 Service Factor UL Recognized and CSA Certified UL Listed for Fire Pump applications (except as noted)

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	17.96
CE:	Y
Connection Drawing Number:	005010.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	12.4/6.2
DE Bearing Size:	6207
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	85.5
Electrical Type:	SQ CAGE IND RUN
Enclosure Type:	DP
Frame Length (IN):	9
Frame Material:	ROLLED STEEL
Frame Size:	182
Frame Suffix:	JP
Frame Type:	182JP
Frequency:	60
HP:	5
Insulation Class:	F
IP Code:	12
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	RIGID
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	0
ODE Bearing Size:	6205
ODE Bearing Type:	BALL
Outline Drawing Number:	035577-900
Phases:	3
Power Factor:	87.5
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	2.8
Rotation:	REV
Service Factor:	1.15
Shaft Diameter (IN):	0.88
Shaft Extension:	7.31
Shaft Type:	JP
Speed:	3505
Speed Max:	3505
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	NONE
UL:	Recognized
Voltage:	230/460
