U166 MAR

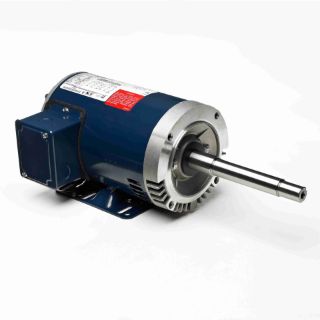

Picture of U166 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
U166
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

182TTDR4124

Features

NEMA JP pump shaft dimensions JPV frame includes drip cover for vertical mount without base JP frame has rigid base, drip cover not included Mechanically locked on shaft end Continuous duty Class B insulation

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):19.16
CE:Y
Connection Drawing Number:A-EE7300
Country of Origin:United States of America
CSA:Y
Current:4.8
DE Bearing Size:6307
DE Bearing Type:Ball
Duty:Continuous
Efficiency:86.5
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):6.75
Frame Material:Rolled Steel
Frame Size:182
Frame Suffix:JP
Frame Type:182JP
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:5
Insulation Class:B
IP Code:22
KVA Code:J
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:2
Number of Speeds:1
ODE Bearing Size:6205
ODE Bearing Type:Ball
Outline Drawing Number:A-SS67308-675
Phases:3
Power Factor:89
Power Rating (HP):5
Power Rating (kW):3.7
Resistance Main:2.8
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):0.875
Shaft Extension:7.32
Shaft Type:JP
Speed:3475
Speed Max:3475
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:575

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
5 HP
Speed Rating
3475
Type
Squirrel Cage Induction Run
Voltage Rating
575 V
