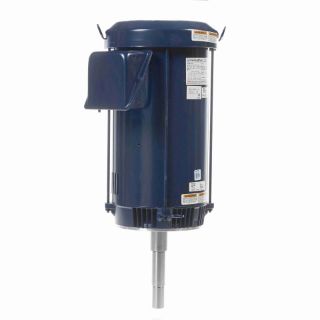

U169 MAR

Name: U169 MAR
Brand: Marathon Electric Motors
SKU: U169 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U169

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

182TTDR4125

Features

NEMA JP pump shaft dimensions JPV frame includes drip cover for vertical mount without base JP frame has rigid base, drip cover included Mechanically locked on shaft end Continuous duty Class B insulation

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	21.94
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	4.8
DE Bearing Size:	6307
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	86.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	6.75
Frame Material:	Rolled Steel
Frame Size:	182
Frame Suffix:	JPV
Frame Type:	182JPV
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	5
Insulation Class:	B
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Shaft Down
Mounting Type:	Round
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS67319-675
Phases:	3
Power Factor:	89
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	2.8
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	7.31
Shaft Type:	JP
Speed:	3475
Speed Max:	3475
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	575
