U1782 MAR

Name: U1782 MAR
Brand: Marathon Electric Motors
SKU: U1782 MAR
Availability: OutOfStock

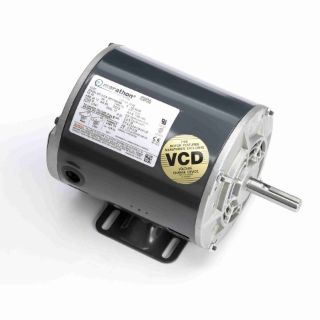

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U1782

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

364TSTDCA6001

Features

Meets or exceeds NEMA Premium® efficiencies NEMA Premium® models are in compliance with EISA2007 182T-215T models steel frame, 254T-449T models cast iron frame Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque, 1.0 SF 1.15 Service Factor Class F Insulation Standard assembly F1, reversible to F2 assembly UL Recognized, CSA Certified, CE Mark

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	26.02
CE:	Y
Connection Drawing Number:	004172-01ME
Country of Origin:	China
CSA:	Y
Current:	190.0-170.0/85.0
DE Bearing Size:	6314
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	93.6
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Material:	Cast Iron
Frame Size:	364
Frame Suffix:	TS
Frame Type:	364TS
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	75
Insulation Class:	F
IP Code:	12
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6314
ODE Bearing Type:	Ball
Outline Drawing Number:	SS622388
Phases:	3
Power Factor:	88.5
Power Rating (HP):	75
Power Rating (kW):	56.0
Resistance Main:	.055
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.875
Shaft Extension:	3.75
Shaft Type:	TS
Speed:	3575
Speed Max:	3575
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460
