U1784 MAR

Name: U1784 MAR
Brand: Marathon Electric Motors
SKU: U1784 MAR
Availability: OutOfStock

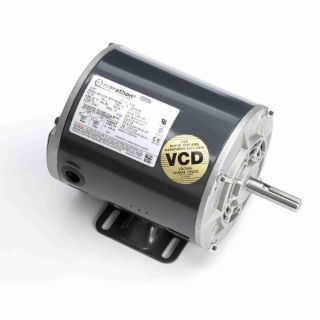

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U1784

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

365TSTDCA6001

Features

Meets or exceeds NEMA Premium® efficiencies NEMA Premium® models are in compliance with EISA2007 182T-215T models steel frame, 254T-449T models cast iron frame Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque, 1.0 SF 1.15 Service Factor Class F Insulation Standard assembly F1, reversible to F2 assembly UL Recognized, CSA Certified, CE Mark

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	26.02
CE:	Y
Connection Drawing Number:	004172-01ME
Country of Origin:	China
CSA:	Y
Current:	251.0-224.0/112.0
DE Bearing Size:	6314
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	94.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Material:	Cast Iron
Frame Size:	365
Frame Suffix:	TS
Frame Type:	365TS
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
HP:	100
Insulation Class:	F
IP Code:	12
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6314
ODE Bearing Type:	Ball
Outline Drawing Number:	SS622389
Phases:	3
Power Factor:	88
Power Rating (HP):	100
Power Rating (kW):	75.0
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.875
Shaft Extension:	3.75
Shaft Type:	TS
Speed:	3570
Speed Max:	3570
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460

Resources

Spec Sheet
