U182 MAR

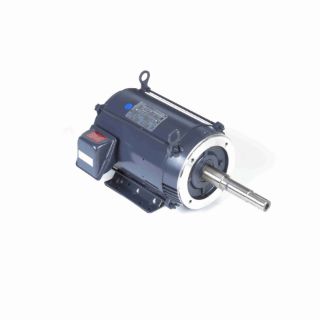

Picture of U182 MAR

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U182

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

213TTDW4044

Features

JP frame has rigid base, drip cover not included

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	23.03
CE:	N
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	22.1
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	88.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Material:	Rolled Steel
Frame Size:	213
Frame Suffix:	JP
Frame Type:	213JP
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	7.50
Insulation Class:	B
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS86594-1115
Phases:	3
Power Factor:	82
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Resistance Main:	1.6
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.375
Shaft Extension:	8.15
Shaft Type:	JP
Speed:	1760
Speed Max:	1760
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	200

Resources

Engineering Drawing Spec Sheet
