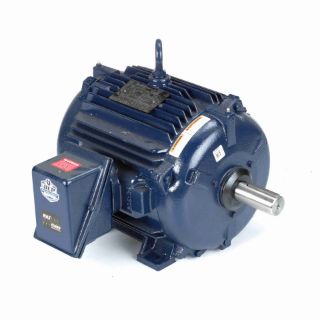

U1871 MAR

Name: U1871 MAR
Brand: Marathon Electric Motors
SKU: U1871 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U1871

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

254TTTNA16545

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint MAX GUARD® Class F insulation system 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower Extended grease tubes, regreasable in service T-drains provided for effective drainage (Installed in both endshields) Suitable for all angle mounting Suitable for 20:1 VT and 20:1 CT on VFD

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	20.61
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	United States of America
CSA:	Y
Current:	37.5/18.8
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	92.4
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Air Over
Frame Length (IN):	1.5
Frame Material:	Cast Iron
Frame Size:	254
Frame Suffix:	TV
Frame Type:	254TV
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	15
Insulation Class:	F
IP Code:	56
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal Or Up Or Down
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6210
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS203092-1050
Phases:	3
Power Factor:	81
Power Rating (HP):	15
Power Rating (kW):	11.2
Resistance Main:	.649
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	4.25
Shaft Type:	T
Speed:	1775
Speed Max:	1775
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
