U1872 MAR

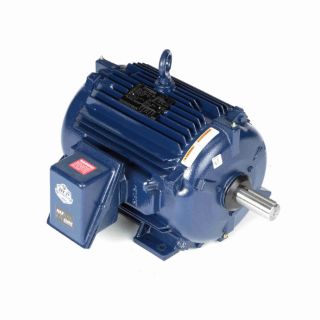

Picture of U1872 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
U1872
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,018.39 / EA

Description

Alternate Supplier #

256TTTNA16544

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration Internal and external epoxy paint MAX GUARD® Class F insulation system 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower Extended grease tubes, regreasable in service T-drains provided for effective drainage (Installed in both endshields) Suitable for all angle mounting Suitable for 20:1 VT and 20:1 CT on VFD

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):22.35
CE:N
Connection Drawing Number:A-EE7308
Country of Origin:United States of America
CSA:Y
Current:48.0/24.1
DE Bearing Size:6309
DE Bearing Type:Ball
Duty:Continuous
Efficiency:93
Electrical Type:Squirrel Cage Inverter Rated
Enclosure Type:Totally Enclosed Air Over
Frame Length (IN):12.25
Frame Material:Cast Iron
Frame Size:256
Frame Suffix:TV
Frame Type:256TV
Frequency:60
Harmonized Tariff Code:8501.52.8040
HP:20
Insulation Class:F
IP Code:56
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal Or Up Or Down
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6210
ODE Bearing Type:Ball
Outline Drawing Number:B-SS203092-1225
Phases:3
Power Factor:84
Power Rating (HP):20
Power Rating (kW):14.9
Resistance Main:.475
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):1.625
Shaft Extension:4.25
Shaft Type:T
Speed:1775
Speed Max:1775
Starting Type:Line Or Inverter
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Totally Enclosed Air Over
Horsepower
20 HP
Speed Rating
1775
Type
Squirrel Cage Inverter Rated
Voltage Rating
230/460 V
