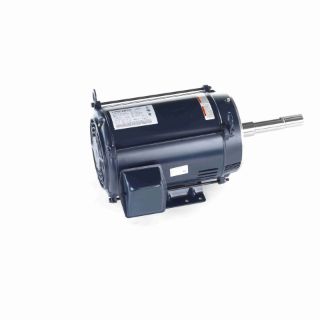

U189A MAR

Name: U189A MAR
Brand: Marathon Electric Motors
SKU: U189A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U189A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

213TTDW14013

Features

NEMA JM pump shaft dimensions JMV frame includes drip cover for vertical mount without base JM frame has rigid base, drip cover not included Ball bearings, mechanically locked on shaft end Continuous duty 1.15 Service Factor UL Recognized and CSA Certified UL Listed for Fire Pump applications (except as noted)

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	23.03
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	Mexico
CSA:	Y
Current:	23.4/11.7
DE Bearing Size:	309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	88.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	11.15
Frame Material:	Rolled Steel
Frame Size:	213
Frame Suffix:	JP
Frame Type:	213JP
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	10
Insulation Class:	B
IP Code:	22
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	206
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS86594-1115
Phases:	3
Power Factor:	90
Power Rating (HP):	10
Power Rating (kW):	7.5
Resistance Main:	1.1
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.25
Shaft Extension:	8.15
Shaft Type:	JP
Speed:	3515
Speed Max:	3515
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
