U1927 MAR

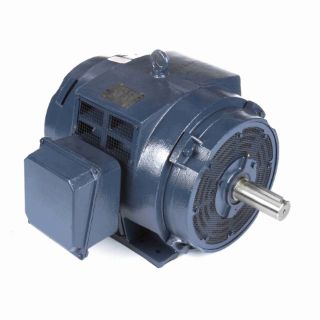

Picture of U1927 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
U1927
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

364TTDCA6086

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motor will accept a C-face kit 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):31.54
CE:Y
Connection Drawing Number:004172-01ME
Country of Origin:China
CSA:Y
Current:107.0-100.0/50.0
DE Bearing Size:6314
DE Bearing Type:Ball
Duty:Continuous
Efficiency:94.1
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Material:Cast Iron
Frame Size:364
Frame Suffix:T
Frame Type:364T
Frequency:60
Harmonized Tariff Code:8501.52.8040
HP:40
Insulation Class:F
IP Code:12
KVA Code:F
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6314
ODE Bearing Type:Ball
Outline Drawing Number:B-SS622157
Phases:3
Power Factor:79
Power Rating (HP):40
Power Rating (kW):30.0
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):2.375
Shaft Extension:5.87
Shaft Type:T
Speed:1192
Speed Max:1192
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:208-230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
40 HP
Speed Rating
1192
Type
Squirrel Cage Induction Run
Voltage Rating
208-230/460 V
