U1928 MAR

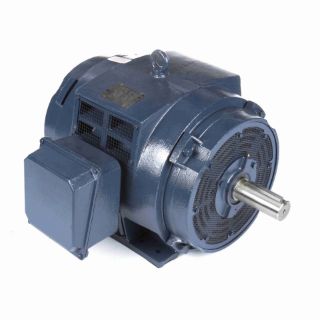

Picture of U1928 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
U1928
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

365TTDCA6086

Features

Meets or exceeds NEMA Premium® efficiencies NEMA Premium® models are in compliance with EISA2007 Motor will accept a C-face kit 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting

Specifications

Assembly/Box Mounting:F1/F2 Capable
C Dim (IN):26.02
CE:Y
Connection Drawing Number:004172.01ME
Country of Origin:China
CSA:Y
Current:134.0-125.0/62.5
DE Bearing Size:6314
DE Bearing Type:Ball
Duty:Continuous
Efficiency:94.1
Electrical Type:Squirrel Cage Inverter Rated
Enclosure Type:Drip Proof
Frame Material:Cast Iron
Frame Size:365
Frame Suffix:T
Frame Type:365T
Frequency:60
Harmonized Tariff Code:8501.52.8040
HP:50
Insulation Class:F
IP Code:12
KVA Code:G
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6314
ODE Bearing Type:Ball
Outline Drawing Number:SS622157
Phases:3
Power Factor:79.5
Power Rating (HP):50
Power Rating (kW):37.0
Resistance Main:.1223
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):2.375
Shaft Extension:5.88
Shaft Type:T
Speed:1192
Speed Max:1192
Starting Type:Line Or Inverter
Type of Overload Protector:No
UL:Recognized
Voltage:208-230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
50 HP
Speed Rating
1192
Type
Squirrel Cage Inverter Rated
Voltage Rating
208-230/460 V
