U200 MAR

Name: U200 MAR
Brand: Marathon Electric Motors
SKU: U200 MAR
Availability: OutOfStock

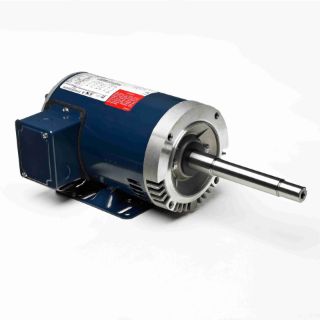

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U200

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

215TTDW4011

Features

NEMA JP pump shaft dimensions JPV frame includes drip cover for vertical mount without base JP frame has rigid base, drip cover not included Mechanically locked on shaft end Continuous duty Class B insulation F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	24.28
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	United States of America
CSA:	Y
Current:	39.0
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	90.2
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	12.4
Frame Material:	Rolled Steel
Frame Size:	215
Frame Suffix:	JP
Frame Type:	215JP
Frequency:	60
HP:	15
Insulation Class:	B
IP Code:	22
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS86594-1240
Phases:	3
Power Factor:	91
Power Rating (HP):	15
Power Rating (kW):	11.2
Resistance Main:	.825
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.25
Shaft Extension:	8.12
Shaft Type:	JP
Speed:	3510
Speed Max:	3510
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	200
