U244 MAR

Name: U244 MAR
Brand: Marathon Electric Motors
SKU: U244 MAR
Availability: OutOfStock

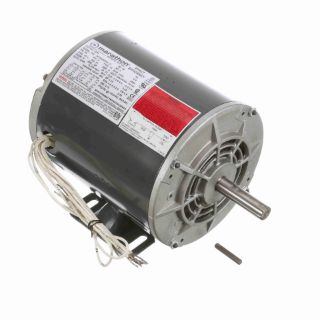

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U244

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T34D6001

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motor will accept a C-face kit F1 mounting only, cannot reassemble to F2 Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	10.44
CE:	Y
Connection Drawing Number:	A-EE7308T
Country of Origin:	United States of America
CSA:	Y
Current:	3.0-2.8/1.4
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	78.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Drip Proof
Frame Length (IN):	6.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Type:	56
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	1
Insulation Class:	F
IP Code:	22
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	A
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100091-656
Phases:	3
Power Factor:	82
Power Rating (HP):	1
Power Rating (kW):	0.75
Resistance Main:	18.32
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	2.32
Shaft Type:	T
Speed:	3450
Speed Max:	3450
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460
